Freeze plug locations, 3.7

[Chuck Donley]

My daughter's 06 KJ is leaking coolant, coming from between engine and bell housing. Please tell me there's a freeze plug back there....runs fine, heat works, steady coolant temp, just a leak.



[Noclutch]

My daughter's 06 KJ is leaking coolant, coming from between engine and bell housing. Please tell me there's a freeze plug back there....runs fine, heat works, steady coolant temp, just a leak.

Having same issue on my 04 3.7
I believe that is a freeze plugs leak from the information I have gathered. Any update?



[LibertyAZ]

Having same issue on my 04 3.7
I believe that is a freeze plugs leak from the information I have gathered. Any update?

My daughter's 06 KJ is leaking coolant, coming from between engine and bell housing. Please tell me there's a freeze plug back there....runs fine, heat works, steady coolant temp, just a leak.

Hey Guys,

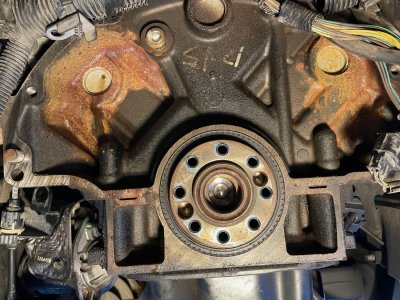

I just finished replacing mine. Same issue, significant coolant leak between engine block and bell housing. Attached are the before and after pictures. Purchased the plugs off Amazon. Changed the rear main seal while I was in there.
Transmission removal and rear main seal replacement:

xc_hide_links_from_guests_guests_error_hide_media



[Noclutch]

Very inspiring! i’m going to do a coolant pressure test to confirm it is the plugs leaking and begin to devise a plan to change them. Any thing else you changed while you were in there?



[LibertyAZ]

Very inspiring! i’m going to do a coolant pressure test to confirm it is the plugs leaking and begin to devise a plan to change them. Any thing else you changed while you were in there?

Since you have to pull the transmission I went ahead and changed the starter since it was already out. Mine looked old and worn.



[lfhoward]

Fantastic work!
