leaking rear seal on manual transmission

[bond007taz]

2004 Jeep Liberty 3.7L Renegade w/ Manual.

I have removed the transmission and transfer case to replace my clutch and I noticed the seal on the rear of the transmission that connects to the transfer case is leaking.

I am trying to find information on how to remove that seal. it is inset a bit into the rear of the transmission.

Anyone have any experience with this?



[JeepJeepster]

Ive never seen this particular seal, are the lip edges exposed? Sometimes you can hit the edge of the seal lip and bend it inward then pop it out.

Ive drilled holes in them and used a course thread dry wall ***** to pop them out.

They make special tools for this too....



[bond007taz]

Ive never seen this particular seal, are the lip edges exposed? Sometimes you can hit the edge of the seal lip and bend it inward then pop it out.

Ive drilled holes in them and used a course thread dry wall ***** to pop them out.

They make special tools for this too....

here is a picture: https://ibb.co/BrKmFw7



[JeepJeepster]

Ive tried searching in the FSM and it doesnt really mention that seal. It has a very short section showing a special tool to remove and replace the seal, thats it. It seems the FSM caters to the 2wd version...

This is basically how I removed the output seal on my 42RE, except I used a drywall ***** and a pair of vice grips. Not sure you have room for that.

xc_hide_links_from_guests_guests_error_hide_media

Im wondering if this is the cheap version of that.

Amazon.com: Cal-Van Tools 49600 Seal Puller,Black: Automotive

Buy Cal-Van Tools 49600 Seal Puller, Black: Rebuild Kits - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com



[bond007taz]

Ive tried searching in the FSM and it doesnt really mention that seal. It has a very short section showing a special tool to remove and replace the seal, thats it. It seems the FSM caters to the 2wd version...

This is basically how I removed the output seal on my 42RE, except I used a drywall ***** and a pair of vice grips. Not sure you have room for that.

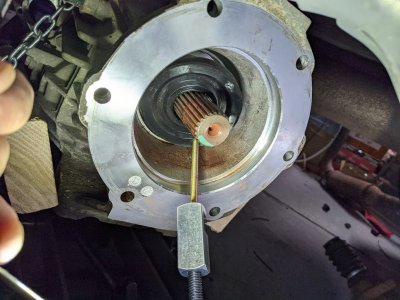

I was able to remove it with a *****, a slide hammer and slide hammer ***** adapter.

Also, here is the seal I was dealing with:
Output Oil Seal Compatible with Wrangler TJ Cherokee XJ 4WD NV-3550 Manual Transmisision



[JeepJeepster]

Very nice! Did you rent the slide hammer or buy one?



[bond007taz]

Very nice! Did you rent the slide hammer or buy one?

i bought a $29 version with ***** adapter from HarborFreight
